EG8247H5 Datasheet
| Basic Parameters | |

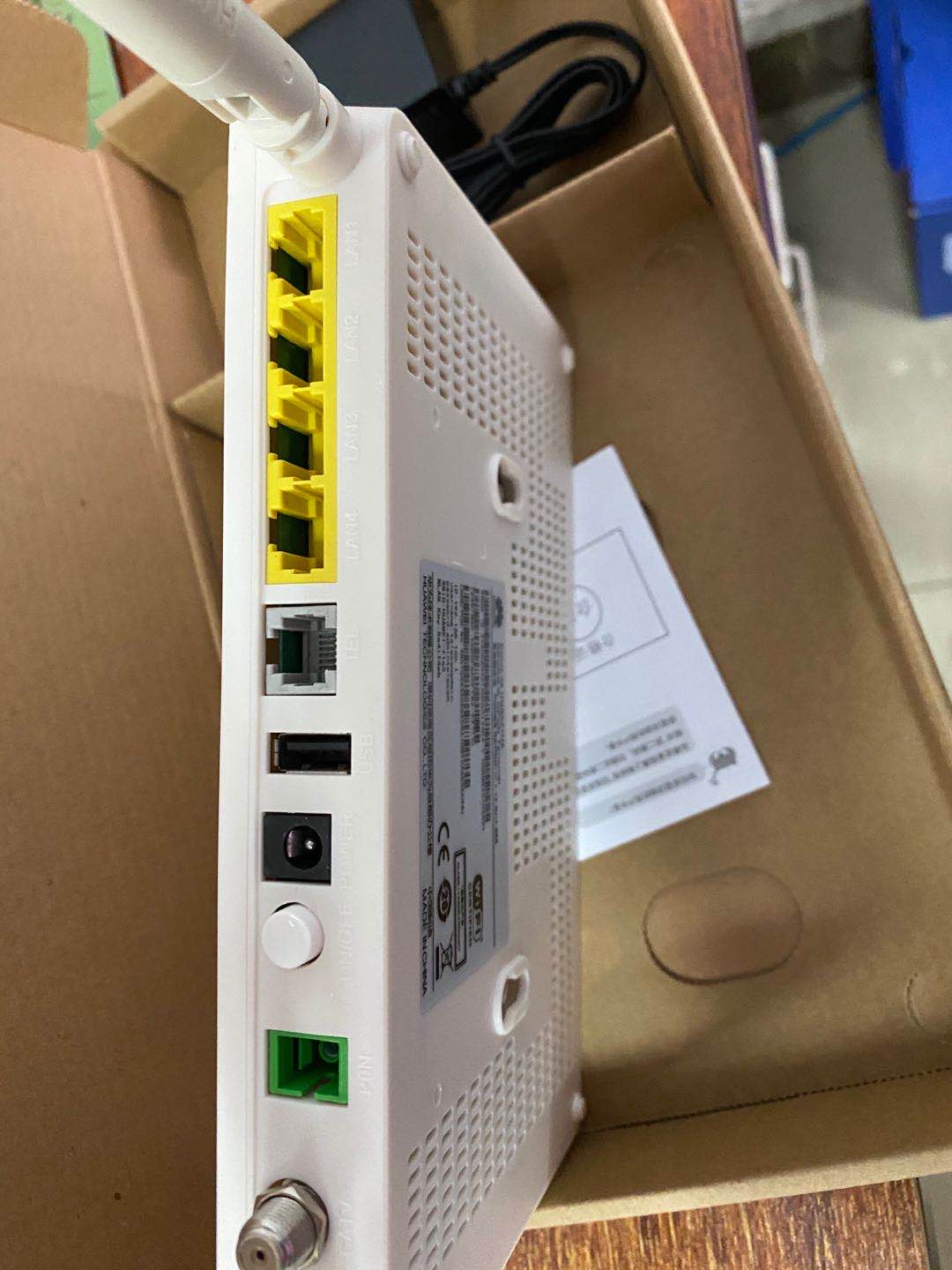

| Ports | 1GE+3FE+1TEL+1USB+1CATV+2.4G WIFI 5dBi |
| SC/APC XPON/GPON/EPON | |

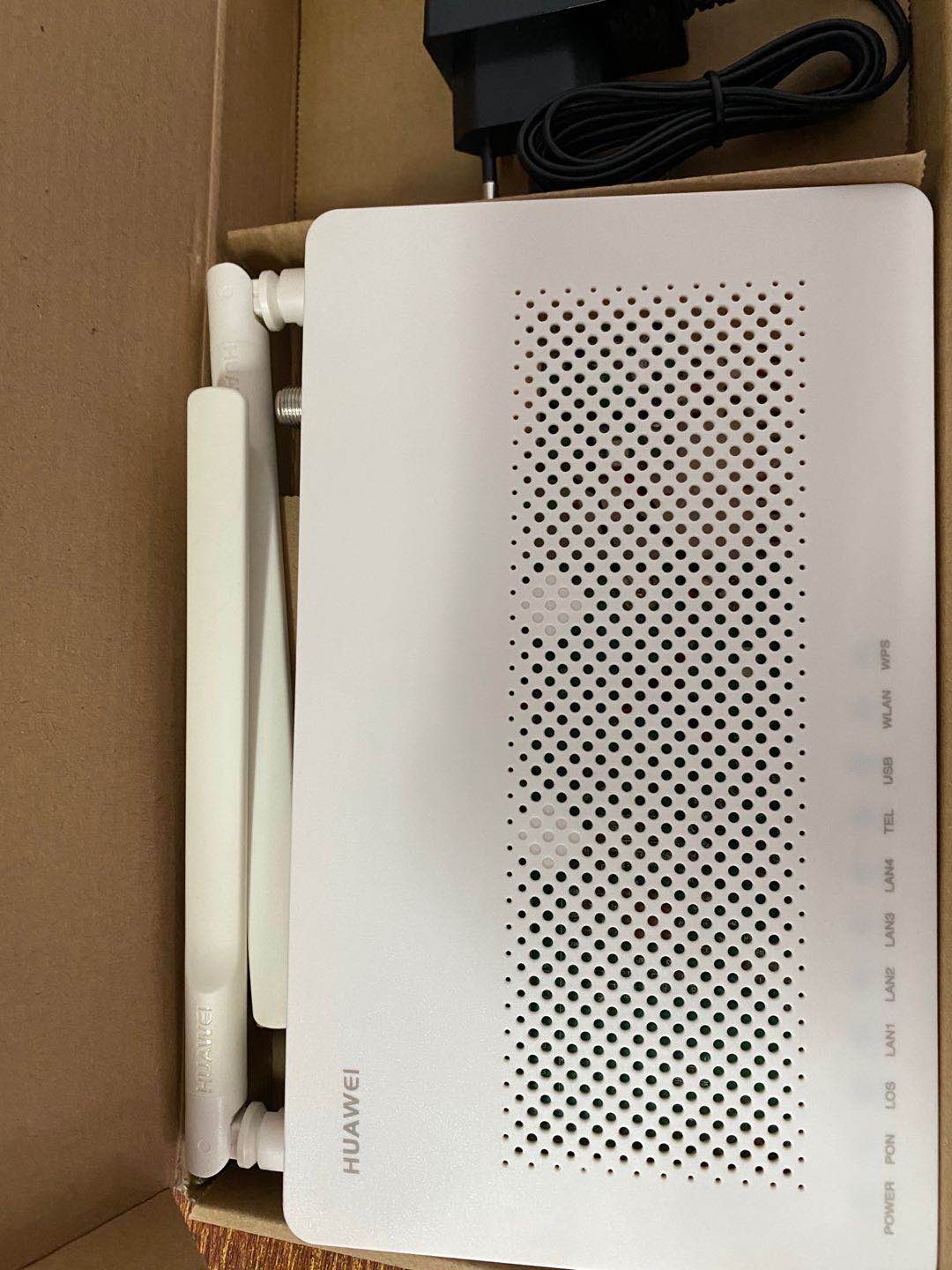

| Indicators | POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS/CATV |
| Static power consumption | 7.5 W |
| Power specifications | Power adapter input: 100 to 240 V AC, 50–60 Hz |
| System power supply: 11–14 V DC, 1 A | |
| Dimensions(length x width x height) | 180 mm x 155 mm x 290 mm |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% (noncondensing) | |
| Weight | About 400 g |
| Interface Parameters | |
| XPON Port | • Class B+ • Receiver sensitivity: -27 dBm • Overload optical power: -8 dBm • Wavelengths: US 1310nm, DS 1490nm • Wavelength blocking filter (WBF) of G.984.5 • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA • Type B (single-homing&dual-homing) |
| Ethernet Port | • Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit the number of learned MAC addresses • MAC address learning • Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s |
| CATV Port | • Frequency Range 54 MHz to 870 MHz • Output resistance 75 ohms • Received average optical power: -12dBm to +4dBm • RF output power: ≥17dBmV/Ch （With RF source analog channel power input = 20dBmV/ch, and 40 analog / 63 digital channels (4.3% OMI analog, 2.15 % digital) |
| POTS Port | • Maximum REN: 4 • G.711A/μ, G.729a/b, and G.722 encoding/decoding • T.30/T.38/G.711 fax mode • DTMF • Emergency calls (with the SIP protocol) |
| USB Port | • USB2.0 • FTP-based network storage • File/Print sharing based on SAMBA • DLNA function |
| WLAN | • IEEE 802.11 b/g/n • 2 x 2 MIMO • Antenna gain: 5 dBi • WMM/Multiple SSIDs/WPS • Air interface rate:300 Mbit/s |
| Product Function | |
| Smart interconnection | • Smart Wi-Fi coverage • SIP/H.248 auto-negotiation • Any port any service • Parental control • L2/L3(IPv4) forwarding: 1G uplink, 2G downlink |
| Smart service | • Scheduled Wi-Fi shutdown • Smart Wi-Fi sharing: Portal/802.1x authentication SoftGRE-based sharing |
| Smart O&M | • IPTV video quality diagnosis • eMDI • Rogue ONT detection and isolation from the OLT • Call emulation, and circuit test and loop-line test • PPPoE/DHCP simulation testing • WLAN emulation |
| Layer 3 Features | • PPPoE/Static IP/DHCP • NAT/NAPT • Port forwarding • ALG, UPnP • DDNS/DNS server/DNS client • IPv6/IPv4 dual stack, and DS-Lite • Static/Default routes • Multiple services on one WAN port |
| Multicast | • IGMP v2/v3 proxy/snooping • MLD v1/v2 snooping |
| QoS | • Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation |
| Common O&M | • OMCI/Web UI/TR069 • Variable-length OMCI messages • Dual-system software backup and rollback |
